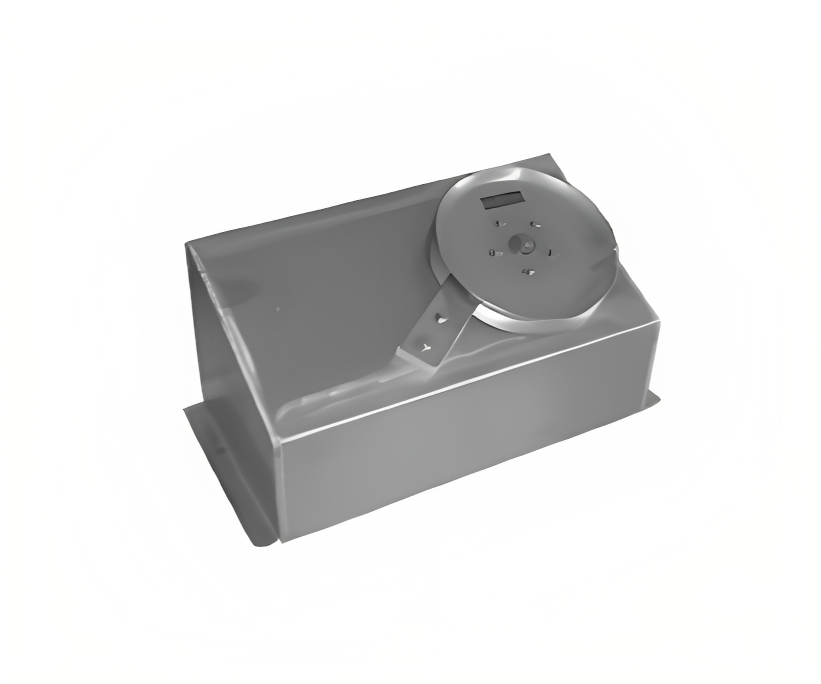

Crab Pot Puller/ Sidewinder

Marine Grade Aluminum Box
Durability is a hallmark of Waterman products. This electric crab pot puller is made of a marine-grade aluminum box for complete sidewinder assembly. Even though pure aluminum is corrosion-resistant in comparison to other metals, the marine grade is a step ahead.
Sheave ( 9-3/ 4 inches)
Additional strength and durability of this electric crab pot puller come from its aluminium box, consisting of a back plate, stainless steel knife, and wheels. To avoid shimming problems, the pinch sheaves are mounted at 18 degrees.
Motor Available in Different hp
Our electric crab pot puller is powered by motors available in 4 options:

1- 3/4 HP 12V 3400 RPM
2- 1 HP 12V 1800 RPM
3- 1 HP 12V 3350 RPM
4- 1 HP 24V 1800 RPM
Range of Gear Reduction Units
This pot hauler sidewinder comes in gear ratios of 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1 or 60:1 to give you a range of options for applying the proper amount of torque.

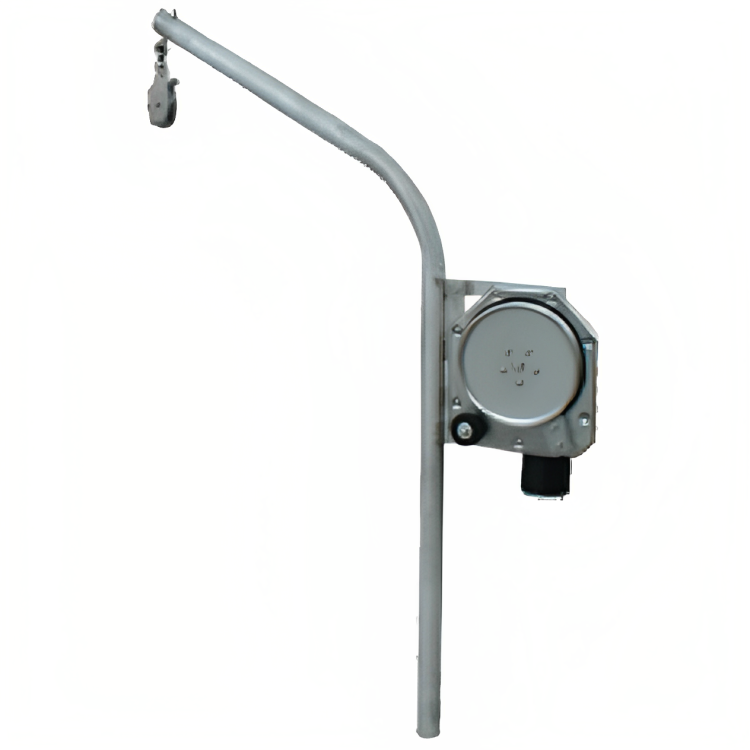

Electric Davit/Boom Mount

Design
It is Designed to be placed on a vertical boom or davit. It gets power from an electric motor at 12 Volts DC.
Power
The power of this electric davit is ¾ Scott or 1 horsepower. It works in gear ratios of 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1 or 60:1
Dimensions
Elect Davut/Boom Mount works with a pot hauler with dimensions of 14 inches x 21 inches x 8 inches. This electric davit has a retrieval speed of 90 to 450 feet per minute
Lifting Capacity
It provides a lifting capacity of 45 to 190 pounds. While the hydraulic pot hauler uses a hydraulic instead of an electric davit.

Order Now

Hydraulic Davit/Boom Mount

Design
Hydraulic Davit/Boom Mount is designed to be mounted to a vertical davit boom. The hydraulic davit gets its power from a hydraulic source.
Power Source
The power source has several options rather than a fixed horsepower. Unlike an electric davit with a range of gear options, a hydraulic boom mount pumps at a speed of +/- 4 Gal per minute.
Working
It also works with a pot hauler measuring 14 inches x 21 inches x 8 inches.
Lifting Capacity
The hydraulic davit has the same lifting capacity as its electric counterpart, 45 to 190 pounds. The retrieval speed of a hydraulic davit is equivalent to the electric one: 90 to 450 feet per minute.

Upgrade to the Lindgren-Pitman SV-2400 Variable Speed Electric Reel and experience unparalleled power, versatility, and performance. Take your fishing endeavors to new heights with this advanced reel designed for dredging, big game fishing, and more.

Order Now

Electric & Hydraulic Pot Hauler

Crab pot pullers are simple machines an angler needs for pulling small pots up from shallow water. Once light pots are thrown into the water, they get heavier and heavier owing to the weight of crabs or shrimps along with the water. Hence, you need power-assisted crab pot pullers for crabbing or shrimping.

We offer electric and hydraulic pot hauler by Waterman. The high-quality design and engineering of these crab pot pullers allow for superior function and reliability. Besides acting as a pot hauler, these can also be used for pulling up fish traps, lobster traps, blue claw crab traps, and other marine gear operating below the surface.

[ Features ]

An In-Depth Look

Features SideWinder Electric Trap Hauler Hydraulic Trap Hauler
Motor 12 Volts DC / 24 Volts DC 12 Volts DC / 24 Volts DC Hydraulic
Scott 3/4 or 1 HP Scott 3/4 or 1 HP Char-Lynn; several options
Retrival Speeds 90-450 Feet/min. 90-450 Feet/min. 90-450 Feet/min.
Deadlift 45-190 Lbs. 45-190 Lbs. 45-190 Lbs.
Hauler Dimesions (24/26)" x 11" x 11" 14" x 21" x 8" 14" x 21" x 8"
Mount Configuration SideWinder Box Boom/Davit Boom/Davit
Gear Ratios 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1 or 60:1 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1 or 60:1 Variable pump speeds +/- 4Gal./min
Available with Hydraulic Motor
Available in Boom/Davit Mount Configuration
Marine-Grade Stainless Pinch Sheave and Knife
Available Stainless on/off switch / soloniod
Available with optional roller
Optional Hauler Only (No Motor)
Designed for Continuous All-day Operation
Brushless, Sensorless Motor
Marine-Grade Aluminum Sidewinder box (small / Large)
Stainless Steel Backing Plate

Electric Motors

3/4 HP 12V 3400 RPM
1HP 12 V 1800 / 3350 RPM
1HP 24 V 1800 RPM

What Distinguishes Us From Others?

Waterman is a US-based manufacturer located in Odessa, Florida. All of our pot haulers are built with the help of computer-aided CNC machines. This ensures high quality, precision, and efficiency in our crab pot pullers. After machine manufacture, each piece is hand-assembled. Another characteristic symbolic of Waterman products is their manufacture from non-corrosive stainless steel and marine-grade aluminum. Hence, not only our crab pot pullers but other fishing products can withstand years of rigorous use in the most demanding environments.
